$ 1,000.00
The tiny house movement has been growing in popularity for several years throughout the United States, and has started to gain ground in Canada as a way for people to live a simpler, portable, more affordable lifestyle. While this lifestyle is not for everyone, the concept is looking more appealing in places where owning your own home is becoming more and more difficult.

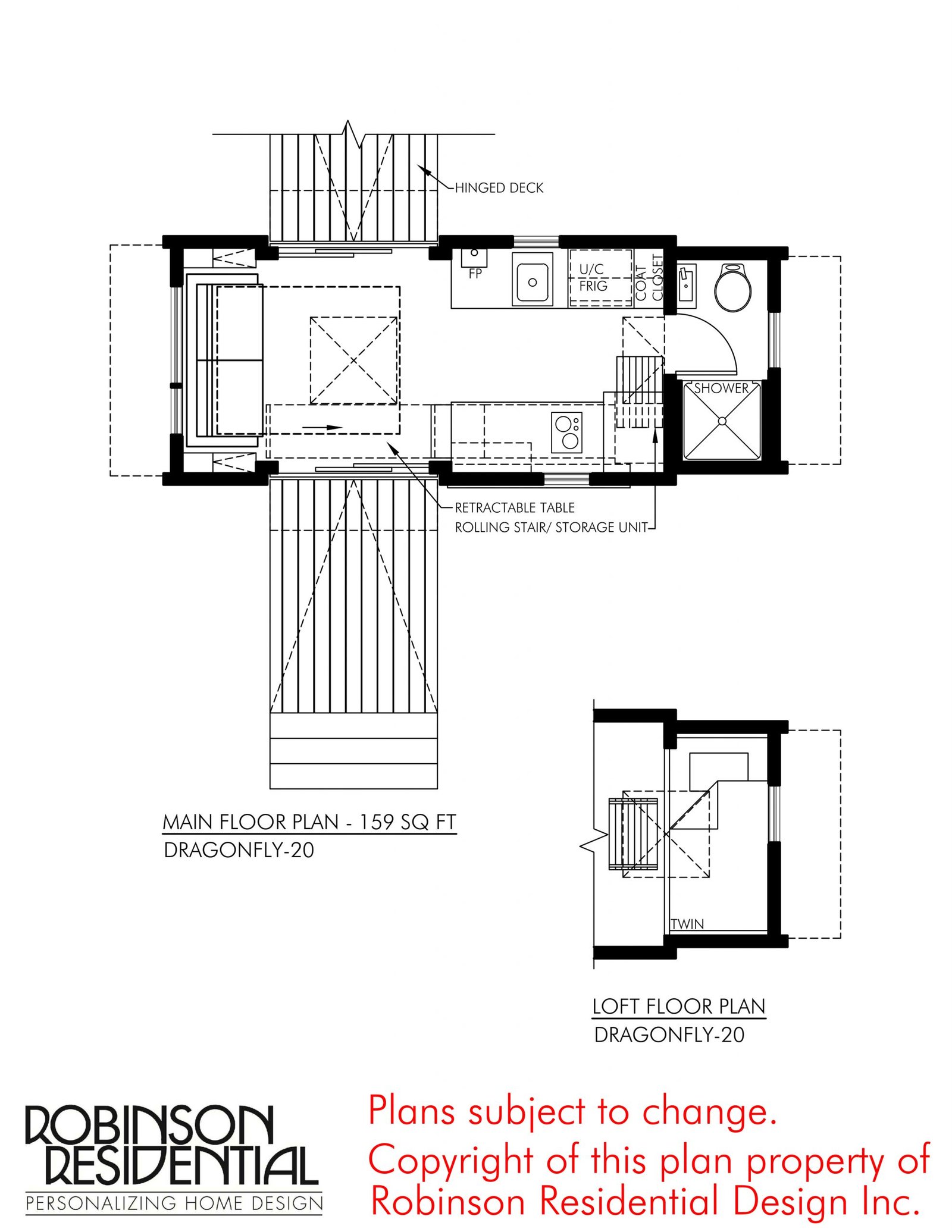

The Dragonfly is our contemporary take on the tiny house movement, and features a design that could comfortably sleep three people and is suitable for entertaining. The house is twenty feet in length and eight foot four inches wide, with a total square footage of 159 sq ft. The structure is built on a flat deck trailer, and the overall dimensions make it road legal for easy transportation. We also offer 24’ and 28’ long versions, which include more space and some additional features.
The Dragonfly-20 was designed as not only a way to achieve simpler living, but also takes comfort into account. The Dragonfly-20 has an abundance of large windows and two skylights on the roof to bring in natural light and make it feel more open.
Additional features include:
| Weight | 3.360 kg |
|---|---|
| Dimensions | 47 × 16 × 16 cm |
| Bed | 1 Bedroom |
| Bath | 1 Bathroom |
| Garage bays | 0 Garage Bays |
| Width | 08ft-4in |
| Storeys | 1 Storey |
| Square footage | 159 |
| Orientation | Reverse (Additional $100), Standard |
| House type | Guest House, Small House, Tiny House/Small Home Plans |
Only logged in customers who have purchased this product may leave a review.
That is a difficult question to answer as construction costs vary widely from region to region. It also depends on how much trim detail you include and the type of finishing you choose. We suggest you speak to contractors in your area to get an estimate of the costs of construction.
Due to privacy considerations, we do not provide the contact information of our clients or specific locations of cottages or homes that have been built. On occasion, we have had past clients that are willing to discuss their building process and share their finished homes with potential clients, however, we provide the potential client information to the past client so they can determine the extent of any contact. You may look under specific products to view any photographs we have been provided of finished cottages.
Yes, a complete set of architectural plans are provided that include everything you will need. However, because of varying soil and drainage conditions, a local engineer must review and approve the foundation. In addition, it is standard practice that the design of specialty items are provided by the supplier or installer. These include but are not limited to roof trusses, floor framing, HVAC design, electrical and gas servicing.
Yes, all sets of home plans are available in mirror (reverse) image for an additional $150. All text and dimensions are mirrored for ease of reading and convenience.
We provide customization services for all of our cottage and home plans billed at our hourly rate. Please refer to “Customize Home Plan” for more information.
A ship’s ladder is a permanently installed ladder for access to the loft. The ladder is sloped about 10 degrees and has narrow treads instead of the slats normally found on a ladder.
In some building codes, a loft accessible via ship’s ladder, rather than by a stair, is not recognized as “living space”. Therefore, the loft area is not included in the square footage calculation on the floor plan. The approved use of these lofts should be verified with local building authorities. If the loft is accessible via a stair, the loft space is included in the square footage calculation on the home plan.
We do not provide study sets of our home plans due to copyright considerations. Any related information that we offer prior to ordering the home plan is shown on the website. If you require further information please contact one of our architectural designers.
All home plans are designed with a concrete foundation as a basement or a crawlspace. Some home plans give you the option of a full basement and a crawlspace. As long as the home plans have a staircase to the basement, you can have a full basement. Other foundation options, including walk-out basement, slab on grade or pier are available as a custom charge.
All home plans are prepared to conform to the National Building Code of Canada. Due to local building codes and climatic conditions, home plans must be reviewed by your local building officials prior to construction. In addition, our home plans meet the requirements of the International Residential Code and the Ontario Building Code. Currently, Ontario is the only province in Canada requiring this additional certification. All other provinces adhere to the National Building Code. Any home plans that are shipped to Ontario also include the necessary paperwork for building permits.
We do not provide material lists for our home plan packages. This is best determined by the company analyzing the drawings and identifying all the materials required (called “material take offs”). Different methods of framing, blocking, openings and corners can make a significant difference in the material required.
Also, many items that used to be provided as individual items are now provided as packages by the manufacturing company supplying the item(s).
A CAD file of the home plan you are interested in can be purchased if you would like to provide the architectural drawings to your engineer, HVAC designer or local professional for modification. Costs vary by home plan so please contact us for pricing.
Start searching for your dream Home Plan and fill out a modification request form if there is anything we can do to make the design better suit your needs and lifestyle.
